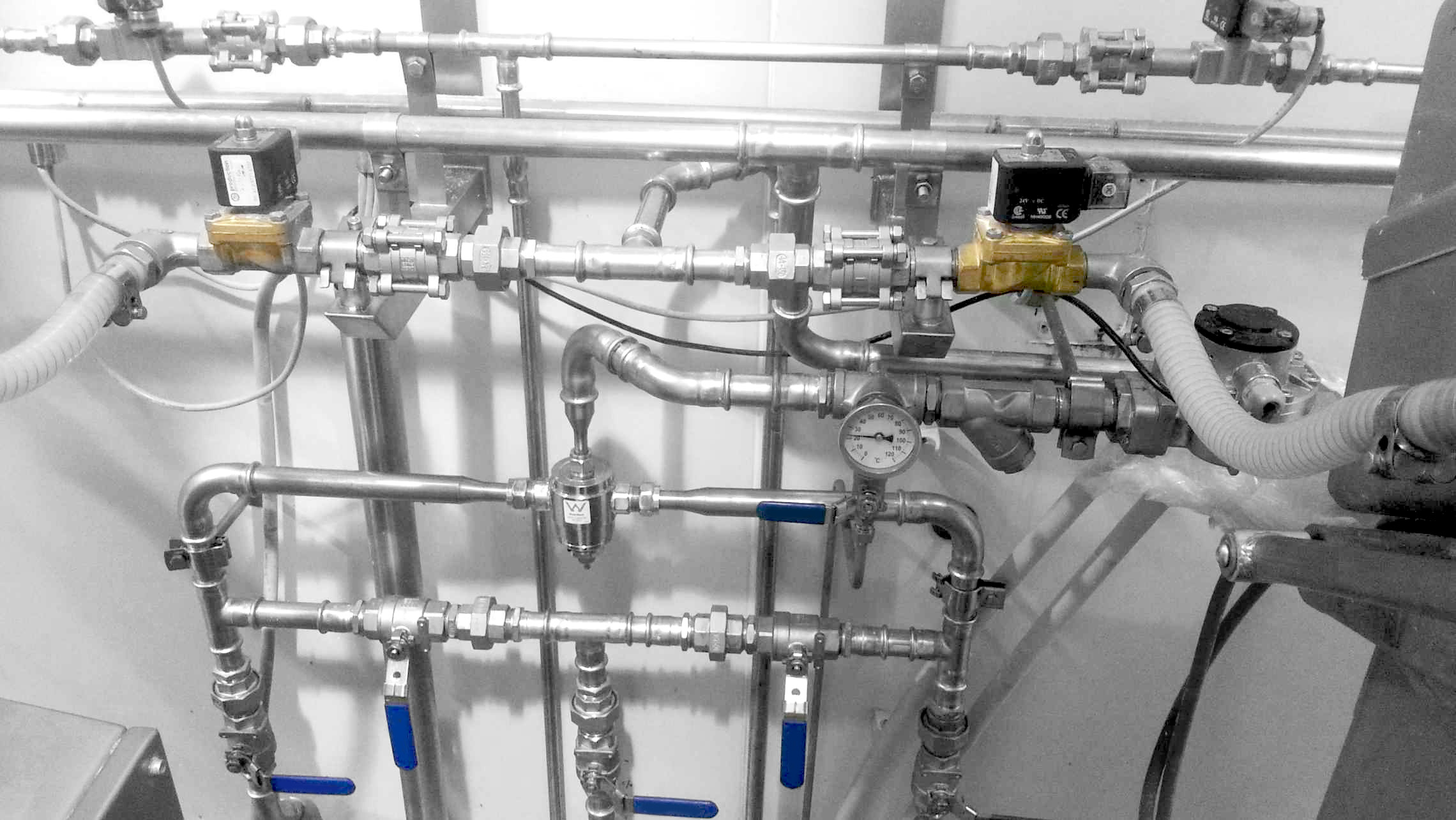

SS Pipeline

SS Pipeline

Piping Layout Process would be installed to meet with standards:

• Pipe layout is designed using few elbows, branch tees, etc and also the continuous slope is provided for correct drainability to reduce pressure loss as low as possible.
• Dead pockets/blind ends are not allowed.
• To avoid undrainable pockets for horizontal pipelines eccentric reducers are used to change pipe diameter to avoid undrainable pockets. Use of concentric reducer is allowed for vertical pipes. Without the use of proper sanitary reducers, change of pipe diameter is not allowed.
• For pipe expansion due to temperature changes inserting a lyre or an expansion joint. Stainless steel expands by more than 1 mm per meter per 100°C heat increase.

• Either by gasket cracking or by gasket intrusion on the flow path, reduces the risk of gasket damage, preventing the possibility of product contamination.
• Limits the clamp pressure through wingnut torque sensing the sealing pressure applied over the sanitary gasket.
• Lower maintenance costs.
• Easy removal and replacement.
• Match to all existing clamp gaskets and unions diameters.
• Keyless clamp fitting. To Increase system cleanability
• Improve piping drainability
• Same weight than standard clamps
